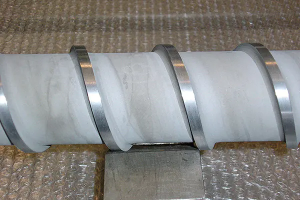

Hvof Coating Screw Barrel

Machines that include plastic extruders and injection molding equipment use screw barrels as their main operational components. The equipment functions to distribute raw materials before melting and blending them. Screw barrels face rapid deterioration because they persistently encounter hot temperatures along with pressurized and abrasive materials during operation.

The HVOF (high-velocity oxy-fuel)  coating serves as a sophisticated thermal spray technology that provides improved durability to these components. The HVOF process generates an extremely dense hardened outer layer that guards screw barrels against wear damage, corrosion, and surface failure.

The FAQ guide provides comprehensive answers about HVOF coating applications on screw barrels and their advantages and restrictions as well as maintenance requirements to assist you in determining whether this solution fits your operational needs.

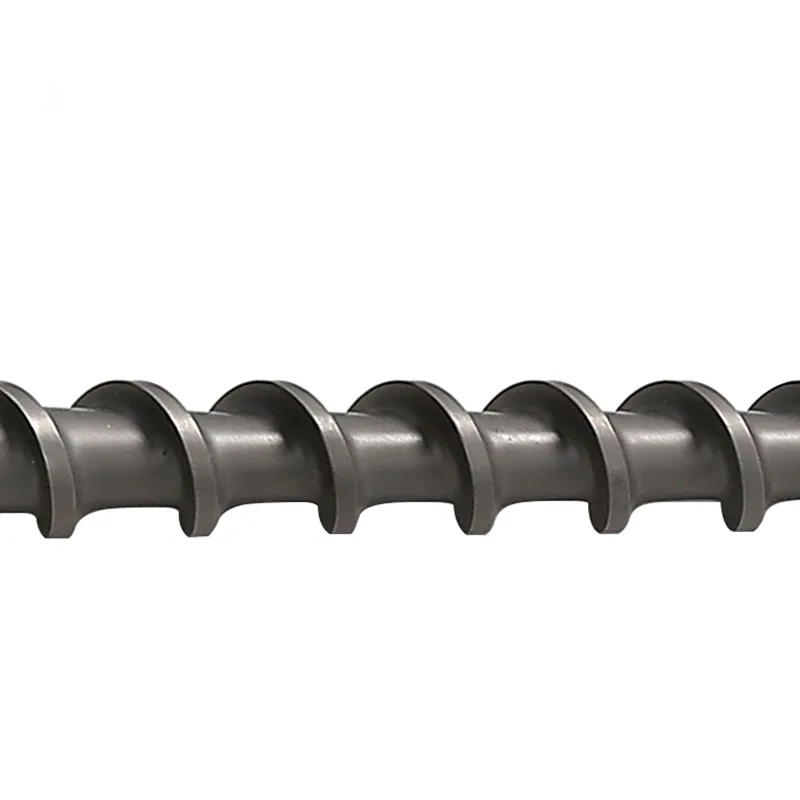

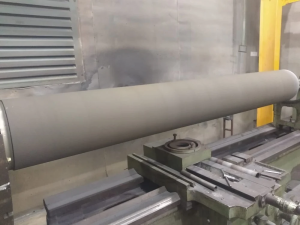

2. What is an HVOF Coated Screw Barrel?

The High-Velocity Oxy-Fuel thermal spray process enhances standard screw barrels by creating HVOF-coated screw barrels. The process heats hard metal powders such as tungsten carbide until they reach high velocity before spraying them onto screw barrel surfaces.

The resulting layer maintains superior adhesion properties while offering remarkable protection against wear damage, corrosion, and surface deterioration. The HVOF coating enables screw barrels to operate under demanding conditions for longer periods without experiencing substantial degradation.

The surface of an HVOF-coated screw barrel becomes harder and smoother than traditional coatings or untreated surfaces, thus sustaining processing efficiency during extended heavy usage periods. The manufacturers adjust coating thickness and material composition according to the specific polymers or other materials that the screw barrel needs to process. The HVOF coating ranks among the best methods for protecting screw barrels during harsh industrial operations.

3. Why is HVOF Coating Used for Screw Barrels?

The HVOF coating technique serves screw barrels because it fights against their main operational challenges, which include wear and corrosion. Screw barrels operate in environments where they encounter continuous friction and heat exposure together with chemical attacks from processed materials.

The unprotected surfaces of these components deteriorate rapidly, because of which the product quality diminishes, energy efficiency decreases, and equipment requires expensive maintenance.

During the HVOF process, the coating achieves high density and toughness while forming strong adhesive bonds with the base metal material. The protective coating functions as an effective barrier that decreases material wear and resists damage from corrosive chemicals and hot temperatures, as well as moisture exposure.

The HVOF coating process results in barrels that deliver enhanced durability, together with smooth material flow, which produces better final product quality. HVOF coating serves businesses by both extending barrel lifespan and improving equipment performance, and reducing ongoing maintenance expenses throughout extended periods. HVOF emerges as an economical solution for industries that maintain thin profit margins and operate under high production demands.

4. What Industries Use HVOF Coated Screw Barrels?

The demanding operational requirements of various sectors make HVOF-coated screw barrels essential for multiple industries. The plastics industry operates as one of the primary consumers of HVOF-coated screw barrels specifically for plastic extrusion and injection molding applications where abrasive additives and fillers lead to standard barrel degradation.

The rubber processing industry utilizes HVOF coatings because rubber compounds tend to be both chemically reactive and abrasive in nature. HVOF-coated barrels gain preference from the food and pharmaceutical sectors because they need corrosion-resistant surfaces that fulfill rigorous standards.

HVOF coating applications extend equipment lifespan and enhance reliability because they reduce machine downtime and maintenance expenses in industries that value these factors. Hygiene and operational standards.

The HVOF coating process protects screw barrels used in chemical processing as well as metal extrusion and aerospace manufacturing operations that operate under extreme working environments. The protective features of HVOF coatings make them suitable for any manufacturing process where equipment handles materials under heat and pressure at high speeds.

5. Through Which Process is the HVOF Coating Applied to Screw Barrels?

The process of applying HVOF coating to screw barrels requires multiple specific steps that produce high-quality durable results. The surface preparation of screw barrels includes careful cleaning followed by grit blasting to achieve an optimal surface for coating attachment.

A special spray gun burns a mixture of fuel gas, which includes hydrogen, propane, or kerosene, along with oxygen to produce a high-pressure flame. The coating material particles, including tungsten carbide or chromium carbide, are introduced into the hot flame, which causes partial melting before they create a coating layer.

The semi-molten particles travel at supersonic velocities toward the barrel surface. The impact causes these particles to flatten before they rapidly cool down into a densely connected coating layer. After coating, the barrel receives finishing treatments that include grinding and polishing to reach the required thickness and surface smoothness level.

The final outcome produces a surface that is both hard and extremely wear-resistant while lasting much longer than standard thermal spraying methods.

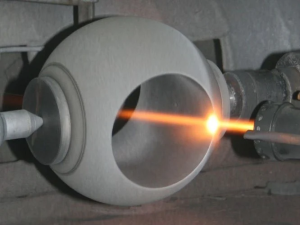

6. What Are the Benefits of HVOF Coating on Screw Barrels?

The HVOF coating of screw barrels comes with many significant benefits.

• First of all, the wear and abrasion resistance of the barrel increases dramatically, even when the machine is in the most severe operation mode.
• It is mainly important in plastics or rubber industries that use abrasive fillers and additives to wear away the barrel walls.
• HVOF coatings also provide excellent resistance to corrosion, which prevents the barrels from chemical, oxidation, and moisture damage.
• Another major benefit is the increased lifespan of the screw barrel—many operators report service life extensions of two to three times compared to uncoated barrels.
• Also, the smooth, dense finish that HVOF spraying produces cuts down on material sticking and enhances material flow,  thus improving the quality of the final products.
• Less maintenance needs and fewer shutdowns for repairs also lead to substantial cost savings. HVOF coating provides reliable, efficient, and profitable operations.

7. How Long Does an HVOF Coated Screw Barrel Last?

The life span of an HVOF coated screw barrel depends on the application, the type of materials being processed, and the working conditions. However, in general, HVOF-coated barrels last two to five times longer than standard uncoated barrels.

In cases where screw barrels are used to process glass-filled polymers or corrosive chemical compounds in harsh environments, the use of HVOF coating can make a big impact,  thus allowing the barrels to last for several years without much wear and tear.

Factors that influence lifespan include the type of coating material (tungsten carbide coating is the best in terms of wear resistance), the coating quality, operating temperatures, and maintenance practices.

It is also worth noting that with proper maintenance HVOF-coated barrels can last longer than the rest of the production line in some industries. Although the initial cost is higher than for uncoated barrels, the extended life and lower maintenance costs usually make HVOF coatings a more economical choice in the long run.

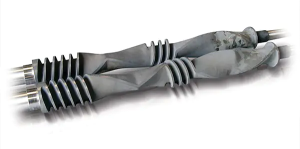

8. What Materials are Used in HVOF Coatings for Screw Barrels?

HVOF coatings generally involve the use of hard and anti-corrosion materials for screw barrels.

Tungsten carbide is the most widely used due to its very high hardness, high wear resistance, and its ability to operate at high temperatures. It is especially useful for applications with abrasive or glass-filled materials.

Chromium carbide is another widely used material that provides high resistance to corrosion, oxidation, and moderate wear. It’s often used when chemical exposure is a greater concern than abrasion.

Specialized materials like nickel-based alloys or cobalt-chromium alloys can be used in specific applications that require high resistance to both temperature and chemicals.

The selection of the coating material is based on the type of materials to be processed, the operational environment (abrasive vs. corrosive), and the desired level of wear vs. corrosion resistance. In some cases, customized blends are used to meet very specific operational demands.

What Is the Difference Between HVOF and Other Thermal Spray Coatings?

HVOF coating is one of the most advanced types of thermal spray coating. Still, it is quite different from other thermal spray methods in terms of particle velocity, coating quality, and application performance.

1. Particle Velocity and Bond Strength

In HVOF, fuel gases (such as hydrogen, propane, or kerosene) are combusted with oxygen to create a high-pressure flame that accelerates the coating particles to supersonic speeds, typically over 700 m/s. This high velocity results in a dense, tightly bonded coating with extremely low porosity. In contrast, traditional methods such as plasma spraying or flame spraying employ lower velocities, resulting in coatings that are more porous and less wear-resistant.

2. Coating Density and Porosity

HVOF coatings are known for having less than 1% porosity, while conventional thermal sprays often exceed 5% porosity. It makes HVOF far superior for applications requiring high corrosion resistance and mechanical durability, like screw barrels in abrasive or chemical environments.

3. Surface Finish and Post-Processing

HVOF coatings have a surface finish that is smoother than coatings from other methods and usually require less post processing. Although they can be ground and polished to meet exacting  tolerances, they are not as rough as arc spray coatings and are not usually suitable for low-precision applications.

4. Thermal Impact on the Substrate

HVOF is a lower temperature flame process compared to plasma spray and thus imposes less thermal stress on the base material. It is important to ensure that parts such as screw barrels are not subjected to dimensional instability and structural deterioration.

HVOF produces harder coatings that are more wear and corrosion resistant than other thermal spray methods, and thus is the method of choice for high-performance industrial applications where longevity and precision are important.

HVOF Coated Screw Barrels Ready for Upgrade

The decision to purchase HVOF-coated screw barrels for extrusion or molding equipment will enhance their functionality and operational lifetime. HVOF technology provides the best solution for applications involving abrasive materials, corrosive environments, or high throughput operations.

At Deer Machine, we specialize in the manufacture of high quality screw barrels with advanced HVOF coatings to meet the specific needs of your industry. Long-term reliability and performance are ensured by our precision engineering, durable materials, and rigorous quality control.

Select Deer Machine’s HVOF-coated solutions and maintain operational performance and extended operational life.
