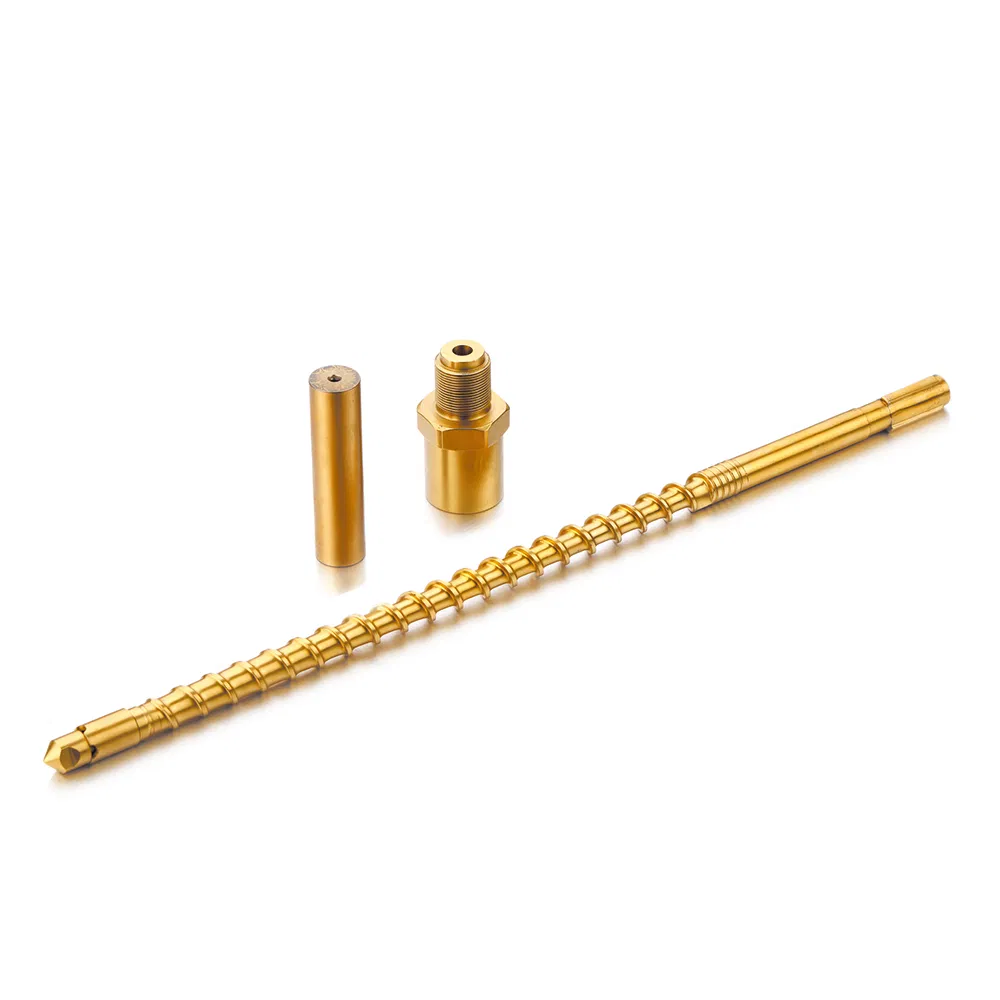

PVD Coating Screw and Barrel
PVD Coating Screw and Barrel Description
PVD is an advanced surface treatment process where a thin, hard coating is deposited onto a metal surface in a vacuum chamber by vaporizing a solid material (such as titanium nitride or chromium nitride) and condensing it onto the part. This creates a dense, uniform, and highly durable coating.
Screw Features:
– Flights: The helical threads that wrap around the screw, conveying the plastic material forward and creating a pumping action.
– Mixing Elements: Special design features, such as barrier flights, mixing pins, or check rings, can be incorporated to enhance mixing and homogenization of the melt.
– Non-Return Valve: Located at the tip of the screw, it prevents the backflow of molten plastic during the injection phase.
PVD Coating Screw and Barrel Description
Advantages of PVD coatings for screws and barrels:
High surface hardness: Improves wear resistance and prevents wear of polymers and fillers.
Chemical wear resistance: Enhances corrosion resistance and chemical attack on aggressive plastics.
Reduces material adhesion: Minimizes polymer adhesion on screw and barrel surfaces, improves fluidity and reduces degradation.
Extended component life: Significantly extends the service life of screws and barrels, reducing maintenance and replacement costs.
Improves processing efficiency: Enhances melt fluidity and reduces friction, thereby improving product quality and reducing energy consumption.
PVD Coating Screw and Barrel Application Industry
– Interior components: Dashboard components, door panels, seats, and trim parts.
– Exterior components: Bumpers, fenders, grilles, and side mirrors.
– Under-the-hood components: Engine covers, air intake manifolds, and fluid reservoirs.
Consumer Products
– Household appliances: Kitchen appliances, vacuum cleaners, and small electrical devices.
– Electronics: Computer peripherals, mobile phone cases, remote controls, and gaming consoles.
– Toys and recreational products: Action figures, board game pieces, and sporting goods.
Packaging Industry
– Food and beverage packaging: Bottles, containers, caps, and closures.
– Cosmetic and personal care packaging: Jars, tubes, and dispensers.
– Pharmaceutical packaging: Vials, syringes, and medical device components.
Deermachine Injection Molding Screw Barrel Advantages
High Production Efficiency
High-quality Screw Barrel can effectively improve efficiency, extend service life, and increase continuous working time of injection molding machines.
Consistency and Precision
Injection molding screw and barrel systems can produce parts with tight tolerances and high dimensional accuracy, ensuring consistency across multiple production runs.
Cost-Effectiveness
The screw and barrel system minimizes material waste by efficiently melting and mixing the plastic, reducing scrap and increasing material utilization.
Turnkey Machine
We improve after-sales service, you have no worries, lift-time services
Our Equipment Brands
| Injection Molding Screw | |
| Specifications | Diameter Ф14-300mm |
| Nitriding depth | 0.5mm-0.7mm |
| Nitride hardness | HV850°-1000 °degrees |
| Straightness | 0.015mm/1000mm |
| Chromium plating thickness | 0.05mm |
| Dual Alloy Depth | 2.0mm |
| Application | General plastic, PP, PE, ABS, AS, PS, PC,PET, bakelite. |
| Processing range | 30g-25000g |
| Clamping force | 250-32,000 tons |
| Injection Molding Barrel | |
| Processing range | inner diameter Ф14-300mm |
| Workpiece length | 10000mm |
| Hardness index | HRC58-63 |
| Adhesion | >126MPA |
| Straightness | 0.015mm/m |
| Surface roughness | Ra0.4um |
1.CNC Processing Workshop
CNC (Computer Numerical Control) processing workshops play a crucial role in the manufacturing and maintenance of injection molding screws and barrels. These workshops are equipped with advanced CNC machines and skilled technicians to perform precise machining, grinding, and finishing operations on screws and barrels.
2.High temperature alloy casting furnace
Dual alloy processing is a specialized technique used in the manufacturing of injection molding screws and barrels to enhance their performance, durability, and resistance to wear and corrosion. This process involves the use of two different alloys or materials strategically combined to create a composite structure with superior properties.
3.Heat treatment workshop
Thermal processing plays a vital role in the manufacturing and maintenance of injection molding screws and barrels. The application of heat treatment and thermal processing techniques helps to improve the mechanical properties, wear resistance, and longevity of these critical components.
4.CNC vertical grinding machine
The use of CNC vertical grinding machines in screw barrel processing offers several advantages, including:
– High precision and repeatability in the grinding process
– Automated and efficient operation, reducing manual labor and increasing productivity
– Ability to handle screw barrels of various sizes and materials
– Reduced lead times and improved quality control
– Extended screw barrel lifespan and reduced maintenance costs
5.Our Stock and Packaging
Haitian, MA 1st, 2nd and 3rd generations are all in stock.

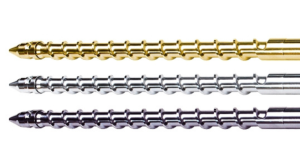

PVD Coating Screw and Barrel FAQ Guide
Plastic processing equipment faces ongoing threats to its longevity and efficiency because of high temperatures, continuous friction, and inevitable wear of screws and barrels. The core machinery components need to resist abrasive fillers and chemically reactive polymers as well as continuous operating cycles. Traditional hardening or coating methods typically fail to meet expectations, thus requiring costly machine downtime along with frequent equipment replacement.
PVD delivers a contemporary solution by forming extremely hard atomic-level metal surface coatings that extend the operational life and enhance the performance of screws and barrels used in extrusion and injection molding machines.
The guide examines PVD technology operations alongside coating options while explaining its growing adoption by innovative manufacturers.
1. How Can You Understand PVD Coating?
A vacuum-based coating process known as PVD applies thin, high-performance films onto metal surfaces. During this process a solid titanium or chromium coating material vaporizes in a vacuum environment before atomic deposition onto the screw or barrel surface. The process that converts solid to vapor then back to solid creates a strong, uniform coating that forms molecular-level bonds.
The main PVD techniques operate through distinct advantages to generate coatings.
Arc evaporation: The coating material is vaporized through electrical arcs. The resulting coatings are known for their high density and their ability to resist wear.
Sputtering: The coating target receives ion bombardment to create particles that form a layer on the substrate’s surface. The method generates both superior adhesion and perfect surface uniformity.
Strong bonding: The Ion plating technique combines vaporization with ionization to develop coatings that have strong bonding characteristics and high density which work well for demanding applications.
2. What are Various Types of Coatings Used in the Industry?
The selection of PVD coatings depends on processing requirements and material properties of polymers undergoing processing. The most widely used PVD coatings on screws and barrels consist of:
Titanium Nitride (TiN): The gold-colored TiN material stands out for its high hardness which provides superior wear resistance along with reduced friction. TiN serves well for standard plastic processing operations.
Titanium Aluminum Nitride (TiAlN): The dark-colored Titanium Aluminum Nitride (TiAlN) coating maintains high temperature stability. The material finds its best use in high-speed or high-temperature applications including fiber production or flame-retardant materials.
Chromium Nitride (CrN): The corrosion-resistant and wear-protective properties make Chromium Nitride (CrN) an excellent choice. The material excels when processing corrosive materials like PVC. Specialized PVD film coatings exist as multilayered systems which unite thermal stability features with mechanical protection capabilities.
These coatings improve the resistance to wear and corrosion of screws and barrels and simultaneously minimize polymer sticking which results in smoother operations and simplified cleaning processes.

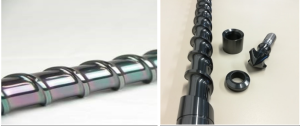

3.What is the PVD Coating Screw and Barrel Application in Industry?
Screws and barrels benefit from PVD (Physical Vapor Deposition) coatings to achieve enhanced performance and extended durability.
The PVD coatings provide screws and barrels with extended durability through enhanced durability and performance in plastic processing applications.
Automotive Industry
Automotive components including dashboards and bumpers and interior trims require screws and barrels with PVD coatings. The rapid wear from glass-filled polymers gets protected by CrN (Chromium Nitride), Tin(Titanium Nitride) and TiAlN (Titanium Aluminum Nitride) coatings, which offer superior abrasion resistance. The PVD coating minimizes equipment downtime and enhances thermal stability which leads to continuous production of high-quality parts in challenging manufacturing environments.
Consumer Products Manufacturing
The production of electronics appliances and household items requires both smooth surface finishes and precise precision. The application of DLC (Diamond-Like Carbon) and AlCrN (Aluminum Chromium Nitride) coatings provides superior anti-stick properties to prevent plastic buildup and minimize defects. The longer lifespan of coated components results in decreased maintenance expenses because they function optimally in high-efficiency molding operations.
Packaging Industry
The production of bottles caps and food packaging through injection molding and extrusion requires materials resistant to PET and HDPE abrasion. The combination of TiCN (Titanium Carbo-Nitride) and WC/C (Tungsten Carbide Carbon) coatings provides enhanced wear resistance and maintains smooth material flow. PVD coatings meet food-grade safety standards to allow their use in direct-contact packaging applications.

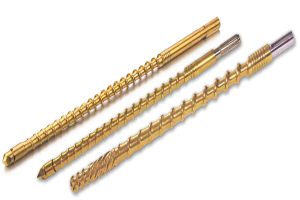

4.Explain Performance Benefits of PVD Coating
The main purpose of applying PVD coatings to screws and barrels exists to boost operational performance and increase service duration. The main advantages of PVD coating consist of the following:
Wear and Friction Reduction
PVD coatings form an ultra-hard surface, which decreases polymer and metal friction. PVD-coated screws and barrels extend their service life because the mechanical wear decreases during high-speed and abrasive processing operations.
Corrosion Resistance
Plastic materials that include flame-retardant halogenated or chlorinated substances produce corrosive gases when processed. PVD coatings made from CrN or TiAlN materials establish a chemical barrier which protects the base metal from corrosion at high temperatures.
Prevention of Polymer Adhesion
Plastic processing faces an unaddressed problem where molten polymers have a natural tendency to bond with screw and barrel surfaces. The problem leads to uneven flow and overheating as well as cleaning difficulties. The anti-adhesive characteristics of PVD-coated surfaces decrease polymer accumulation, which helps sustain product quality and decreases maintenance requirements.
Enhanced Process Stability
The coated surfaces prevent buildup formation while sustaining their profile shape for extended periods which leads to uniform melt flow. The process becomes more stable through these coatings, which reduces thermal damage and decreases operational interruptions.
5.How to Compare PVD Coating with Other Coating Methods?
Manufacturers evaluate PVD (Physical Vapor Deposition) protective coatings for screws and barrels against nitriding and hard chrome plating and thermal spraying and chemical surface treatments before making their selection. The protective coating method PVD provides superior performance compared to other alternatives through its distinct advantages.
PVD Coating vs. Nitriding
The heat treatment process of nitriding enables steel surface hardening through nitrogen diffusion. The process delivers good wear resistance yet fails to protect against corrosion effectively.
PVD coatings deliver both hardness and chemical resistance through a process that maintains part dimensions so they remain suitable for aggressive polymers and high-temperature applications.
PVD Coating vs. Thermal Spray Coatings
The thermal spraying process uses molten metal or ceramic materials to generate thick coatings that have a rough surface finish. The application of this method produces satisfactory results for heavy-duty tasks yet its rough surface texture enables polymers to become trapped which leads to screw and barrel flow problems.
The thin, uniform nature of PVD coatings maintains critical dimensions and surface smoothness, which is vital for exact plastic manufacturing requirements.
PVD Coating vs. Chemical Surface Treatments
The chemical processes of phosphating and oxidation provide minimal wear resistance but do not protect against heat or corrosion.
PVD offers customized solutions for processing requirements which include wear resistance and high heat and chemical exposure applications thus providing superior versatility. PVD coating serves as a contemporary high-performance solution for plastic extrusion and injection molding applications because it delivers essential features of uptime and precision and reliability.
Deer Machine enables performance enhancement through the use of PVD-Coated Screws & Barrels.
The company develops advanced PVD-coated screws and barrels that optimize performance levels for essential industries. Our superior coating method delivers enhanced durability along with extended operational duration and peak manufacturing results for your plastic manufacturing needs.
The PVD coating process delivers new levels of operational reliability and durability and process control capabilities.
The PVD-coated screws and barrels provide companies with performance and profitability benefits through a strategic long-term investment for their plastic processing operations.

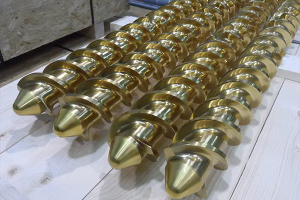

6.How Does PVD Coating Enhance the Corrosion Resistance of Screws and Barrels?
Through PVD (Physical Vapor Deposition) coating, you create a dense, chemically stable barrier form on metal components to protect their surface from corrosion. Here’s a detailed overview of the process:
1. Chemically Inert Barrier
The PVD coatings TiN, CrN, and TiAlN maintain high inertness and stability in harsh operational environments. These materials show low reactivity toward the aggressive chemicals and acids and halogenated gases that some polymers produce during processing. These protective layers safeguard the steel foundation from both oxidation processes and chemical assaults.
2. High Temperature Stability
The majority of corrosion-related processes speed up when operating at high temperatures. The specific coating material determines the temperature resistance, which can reach between 400–600°C. The chemical properties of PVD coatings remain unaltered through thermal cycles, which frequently occur in plastic extrusion and injection molding processes.
3. Improved Surface Hardness and Smoothness
The surface hardness of TiN and TiAlN coatings reaches 2000–3500 HV, which provides excellent protection against both corrosive wear and abrasive wear, particularly when processing filled or recycled polymers. PVD coatings achieve low surface roughness that helps prevent polymers from degrading and accumulating moisture, which causes corrosion.
PVD-coated screws and barrels function as the best option for operators who work with corrosive and abrasive polymers and materials at high temperatures.
Conclusion
The plastic processing industry faces growing demands on equipment components, particularly for screws and barrels, which drive the heart of extruders and injection molding machines. Modern production speeds, along with abrasive compounds and chemically aggressive materials, have outgrown the capabilities of traditional coatings.
PVD coatings on screws and barrels deliver improved reliability along with enhanced durability as well as process control capabilities. These advanced surface treatments help manufacturers extend equipment life by reducing friction and polymer buildup and fighting corrosion while preserving dimensional integrity.
