Wire Cable Extruder Screw Barrel

The wire and cable manufacturing industry heavily depends on extrusion methods for installing protective layers around electrical conductors. The screw barrel functions as the essential core component in this operation. The screw barrel serves as an essential component through which the plastic material that coats wire is melted and mixed before being pushed. The manufacturing industry tends to ignore this essential component.

The design, combined with screw barrel quality and performance level, determines both the efficiency of extrusion lines and the consistency of end products. The guide investigates how screw barrels operate in wire and cable extrusion as it explores their design structure and operation difficulties together with recent advancements to help manufacturers choose better equipment for maximizing manufacturing output and product quality.

A Comprehensive Overview of Wire and Cable Extrusion

The manufacturing of electrical cables and communication wires and fiber optic cables and other applications uses wire and cable extrusion as its standard production technique. The process requires pouring melted plastic onto wires, which then hardens to form protective outer coverings. The standard extrusion line contains fundamental components which operate together to deliver efficient performance.

The success of complete extrusion operations depends on the quality and operational performance of the screw barrel. The correct design of screw barrels allows for perfect plastic melting and mixing that produces superior wire coating results. This component functions correctly to maintain constant output production while minimizing both operational waste and equipment shutdowns.

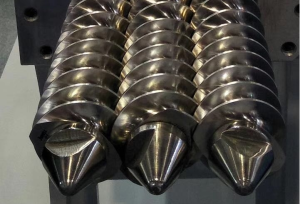

What is the Function of the Screw Barrel during the Extrusion Process?

The extruder functions as the primary equipment, which contains the screw barrel. The plastic material enters the extruder to undergo melting by the rotating screw inside the barrel before reaching the shaping tool known as a die. The material reaches the water or air cooling systems for solidification after passing through the die.

Different applications require various plastic materials for their implementation. The material selection includes PVC as a cost-effective, fire-resistant option and polyethylene for its flexible nature alongside XLPE, which delivers enhanced heat resistance and durability. The cable’s operating performance depends on the selection of suitable materials for its operation.

The screw barrel performs multiple essential functions in the extrusion process. The rotating screw within the barrel accepts plastic pellets or granules through its rotation, which produces heat and pressure until melting occurs. The plastic melting process occurs when the plastic achieves uniform distribution. The screw drives molten material at a controlled rate to maintain a constant flow until it reaches the die shape.

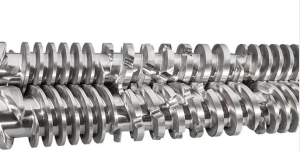

How are Screw Barrels for Wire & Cable Extrusion Constructed?

The manufacturing process of wire and cable extrusion screw barrels uses materials that demonstrate both heat resistance and pressure resistance and wear resistance properties.

Nitrided steel serves as the preferred material because it creates a hard surface that also resists corrosion. The selection of bimetallic barrels with additional wear-resistant coatings becomes necessary for applications requiring high performance. The combination of tungsten carbide coating on screw barrels provides maximum service life and durability for materials that are abrasive and corrosive.

Design parameters that affect screw barrel performance exist in multiple numbers.

The L/D ratio, which represents the ratio between screw length and diameter, controls the material melting and mixing process. A longer screw normally enables better processing.

The compression ratio of the screw shows the amount of material compression during the extrusion process. The mixing performance and pressure output improve when the compression ratio increases.

The flight depth measurement on screw threads controls both material transportation volume and barrel flow performance. The two main types of extruders exist as single-screw and twin-screw models, which dominate the market. The single-screw extruder remains the simplest and most affordable option that fulfills typical cable extrusion requirements. A screw extruder operates with two synchronized screws to achieve better mixing and increased output rates.

Twin-screw systems prove more suitable for handling complex materials while delivering precise and high-performance results.

Write Some Common Challenges and Solutions in Screw Barrel Performance?

In the wire and cable extrusion sector, the screw barrels operate under demanding conditions, which can negatively affect their functionality and lifespan. The most prevalent issue is wear and corrosion, particularly for materials that are abrasive or corrosive. Over time, this results in lower mixing efficiency, product quality problems, and equipment failures.

Another problem is material degradation, which occurs when the plastic is left in the barrel for a long time or when it is heated unevenly. This leads to coloration, charring, or thinning of the insulation layer on the wire.

In order to solve these problems, the maintenance work needs to be done. Cleaning the screw and barrel after every production cycle to eliminate material accumulation and deterioration. When wear becomes evident—such as a decrease in the output or nonuniform extrusion, it may be time to refurbish or replace the barrel.

Some manufacturing companies, such as Deer Machine, supply high-quality screw barrels with specific coatings and materials that enhance wear and corrosion resistance, thereby increasing the useful life of the equipment and the overall efficiency of the machine.

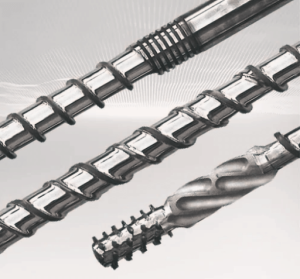

What are New Innovations and Advancements in Screw Barrel Technology?

Screw barrels are being designed to be more durable, more efficient, and to consume less energy as the technology of extrusion continues to evolve. A major advancement is the employment of advanced surface coatings such as tungsten carbide and special bimetallic layers that increase the barrel life even in adverse operating conditions. These coatings decrease friction and wear, increasing the reliability of the screw barrel in the long run.

Major progress has been made in the area of screw design with energy saving in mind. Manufacturers can decrease the energy required to melt and move the plastic by modifying the design of the screw and its compression profile. This results in reduced operating costs and environmentally friendly production.

There is a growing trend of implementing smart monitoring systems. The systems monitor screw performance in real time and alert the operators to wear, overheating, or material buildup. With the help of these technologies, operators can prevent problems from causing downtime through predictive maintenance. The screw barrel designs of wire and cable manufacturers such as Deer Machine include many of these advanced features to help them compete in the market.

How Do You Select the Right Screw Barrel for Wire & Cable Extrusion?

The choice of the right screw barrel is very important in the process of extrusion, as it determines the efficiency and quality of the extruded product. Several factors should be considered when choosing the right screw barrel,  including

• The type of plastic material being used
• The desired production speed
• The required operating temperatures

For example, some materials may need a higher compression ratio or special coatings in order to handle their particular processing characteristics.

Buyers also have to decide between the standard and custom screw barrels. The standard models are usually cheaper and easily available, but they may not be the most suitable for the given materials or production goals. Custom-designed screw barrels, such as those offered by Deer Machine, are designed to meet the specific requirements, provide better performance, higher output, and longer life.

Also, it is important to cooperate with reliable manufacturers and suppliers who understand the needs of the wire and cable extrusion. A good supplier will not only provide a good quality product but also provide the support in the installation, maintenance, and performance optimization.

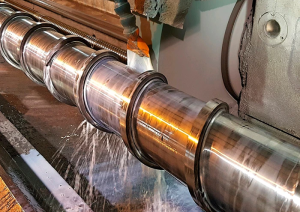

What are some Maintenance and Optimization Tips?

In order to prolong the life of screw barrels, it is important to perform regular checkups and maintenance. This includes regular cleaning after each production batch to get rid of any leftover material, especially if different polymers are being used in the same line. Checks should be done to check for signs of wear and tear, such as low production rates, poor melt quality, and strange noises when in use.

One obvious sign that the screw barrel needs attention is a drop in the output or the inconsistency in the cable’s insulation layer. In such cases, it is better to seek the opinion of the supplier or a qualified engineer. It is advisable to replace worn-out parts before they lead to bigger problems in order to save on time and costs.

In addition to this, in order to get the best out of a screw barrel, it is also important to adhere to the maintenance schedule recommended by the manufacturer.

Conclusion

The screw barrel is one of the most important parts of the wire and cable extrusion machine. They are involved in the melting, mixing, and conveying of plastic materials in a precise and consistent manner. A well-designed and properly maintained screw barrel not only increases product quality but also improves production efficiency and decreases long-term operating costs.

As the industry is developing, new technologies such as better coatings, energy-saving designs,  and intelligent monitoring systems are changing the way screw barrels work. This will become even more important in the future as manufacturers try to improve efficiency and sustainability.

For the professionals in the wire and cable extrusion industry, buying a high-quality screw barrel from a reliable supplier such as Deer Machine can make all the difference. Therefore, it is important to select the right design, follow the right maintenance procedures and stay updated with the new technologies to ensure the long-term success and reliable cable production.
